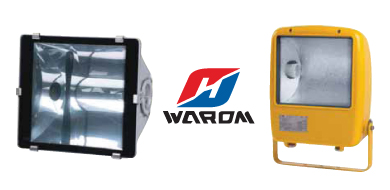

Series BnT81

Technical specifications

Explosion protection to:
• CELENEC
• IEC
• NEC

It can be used in:
• Zone 2
• Zone 21 and Zone 22
• Class 1 and Zone 2
• Class 1, Division 2, Groups A, B, C, D

Available lamp (max 1000W):
• Metal halide lamp (HIE)
• High pressure sodium lamp (HSE)

Two types of enclosures: 400, 1000.
Type 400: The lamp and the ballast are of integral type.
Type 1000: The lamp and the ballast are of the divided type.

Enclosure in copper-free aluminum, powder coated surface, yellow (RAL 1021).

Both the American standard and the European standard are available.

Type 400 are supplied without lamps. PHILIPS lamps are recommended.

Type 1000 is supplied with lamp.

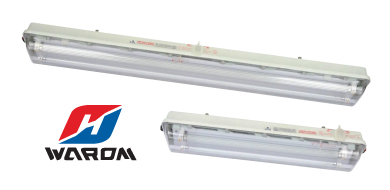

Series BAY51-Q

Technical specifications

Explosion protection to:
• CELENEC
• IEC
• NEC

It can be used in:
• Zone 1 and Zone 2
• Zone 21 and Zone 22
• Class 1 Zone 1 and Zone 2
• Class 1, Division 2, Groups A, B, C, D

Two types of cabinets: Type I and Type II
• Lamp and power available
• T8 fluorescent lamp: 18W x 1.18W x 2.36W x 2

Enclosure in polyester reinforced with fiberglass (GRP), diffuser in polycarbonate, corrosion proof.

Box with explosion-proof components inside.

Security interlocking between the cabinet and the diffuser, it shuts off when opening.

Built-in electronic ballast, power factor> = 095

Emergency unit with overload and over discharge protections.

Protection of the effect of rectification of the end of the useful life of the lamp (EOL).

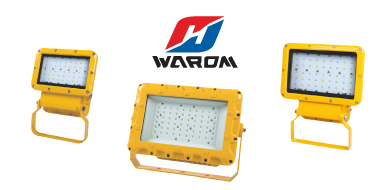

Series BAT86

Technical specifications

Explosion protection to:
• CELENEC
• IEC
• NEC

It can be used in:
• Zone 1 and Zone 2
• Zone 21 and Zone 22
• Class 1, Zone 1 and Zone 2
• Class 1, Division 2, Groups B, C, D Three types of cabinets: 90,160, 240 Applicable lamp and power (max 240W) LED: 60W, 90W, 120W, 200W, 240W

Isolated LED lamp compartment, CC-CV (Constant current - Constant voltage) Power controller compartment and terminal compartment; structure of heat dissipation of wind - convection.

The standard products are reflector effect, 40º and 60º lenses can be provided upon request to perform the reflector effect.

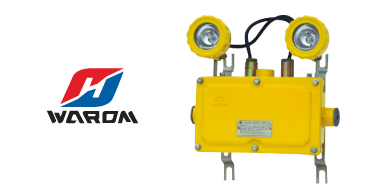

Series BAJ52-20

Technical specifications
Explosion protection to:
• CELENEC
• IEC
• NEC

It can be used in:
• Zone 1 and Zone 2
• Class 1, Zone 1 and Zone 2
• Class 1, Division 1, Groups C, D

Copper-free Aluminum Box, powder-coated surface, yellow (RAL 1021).

The lighting angle can be adjustable.

Low power halogen tungsten lamps, with reflector to increase the intensity of the lighting Emergency device with Ni-MH batteries, which is automatically charged, when the power supply is cut, the emergency device starts to work , with overload and overload protection.

Hardened glass cover resistant to temperature changes.
